Giant Acrylic Lens and Prism Set of 7

Item # 92-1460

$63.00
Sold out
Shipping calculated at checkout.
Buy 6 and pay $56.50 each!

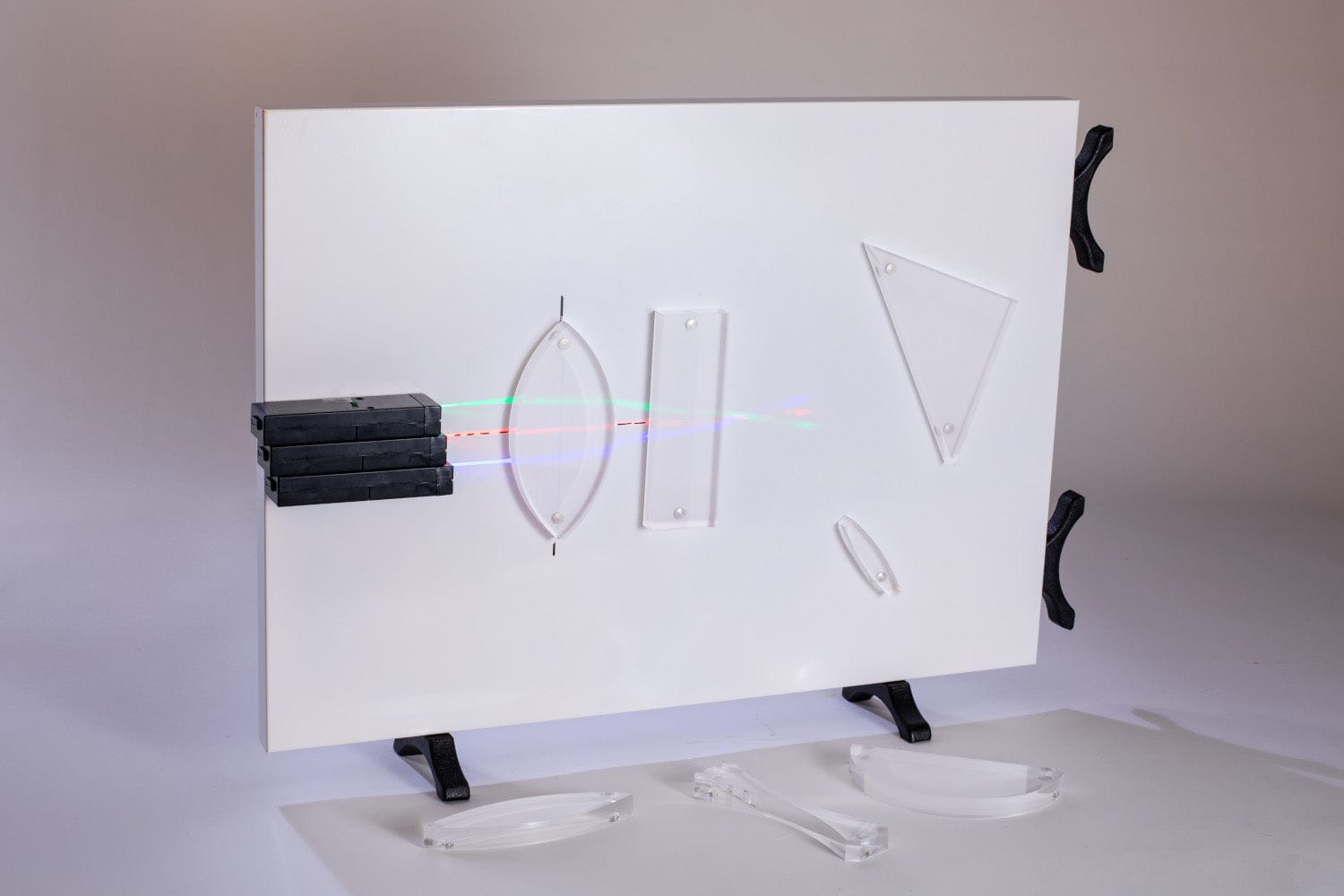

With embedded neodymium magnets in each acrylic piece, these durable lens' and prisms make demonstrations of principles like refraction, reflection, Snell's law, critical angle, and total internal reflection easy for everyone to see on a whiteboard or other vertical surface. Includes storage case.

WARNING: Cancer & Reproductive Harm -- www.P65Warnings.ca.gov
In Stock

Additional Details

The large size of these optical components make this lens and prism set suitable for group work or even demonstration in front of the entire class. The set includes a variety of lenses and prisms, all of which are embedded with powerful neodymium magnets that allow for vertical demonstration. These magnets are strong enough to hold the components in place, making it easy for teachers and students to experiment with different configurations. The set also comes with a sturdy storage case, ensuring that the lenses and prisms stay organized and protected when not in use.

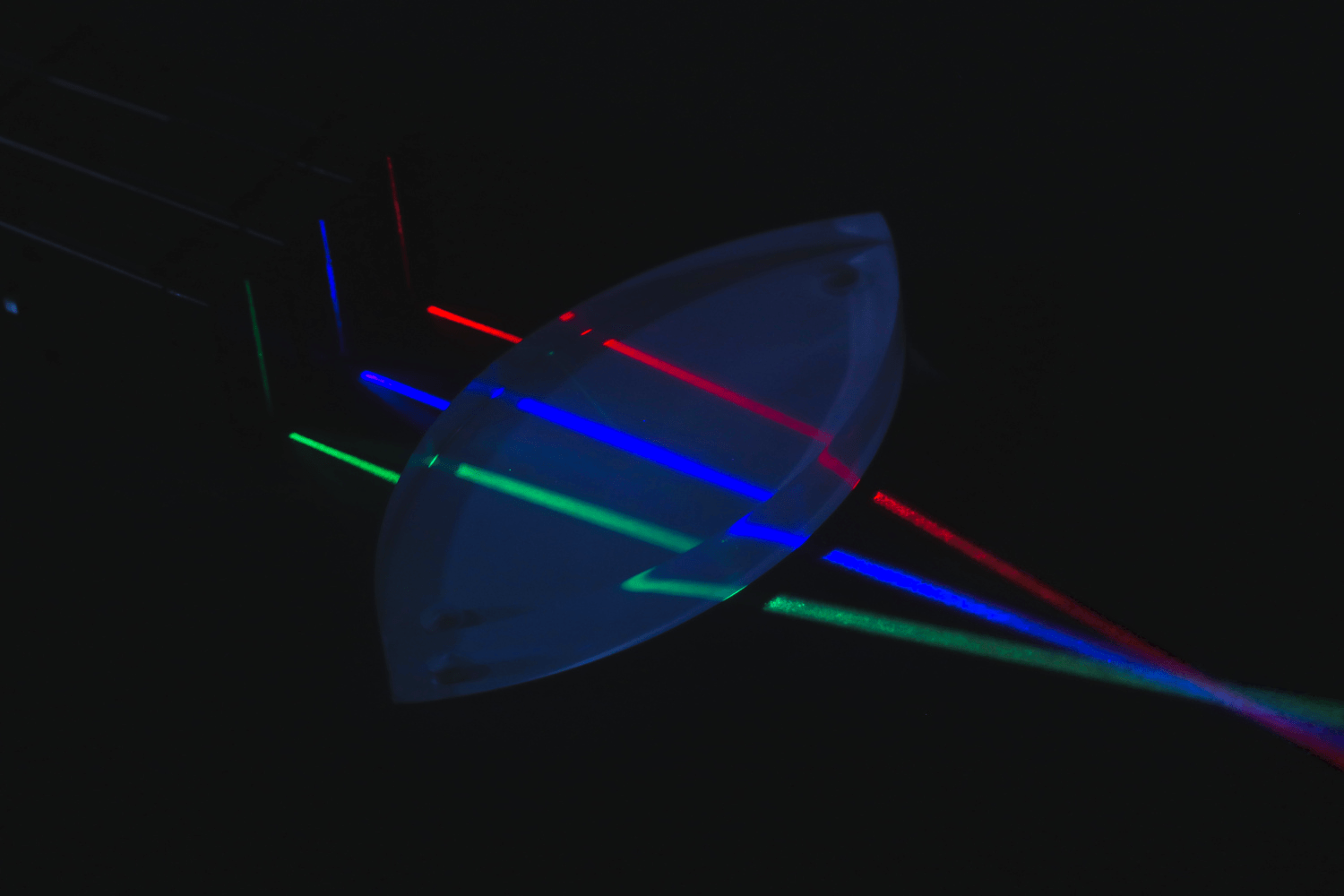

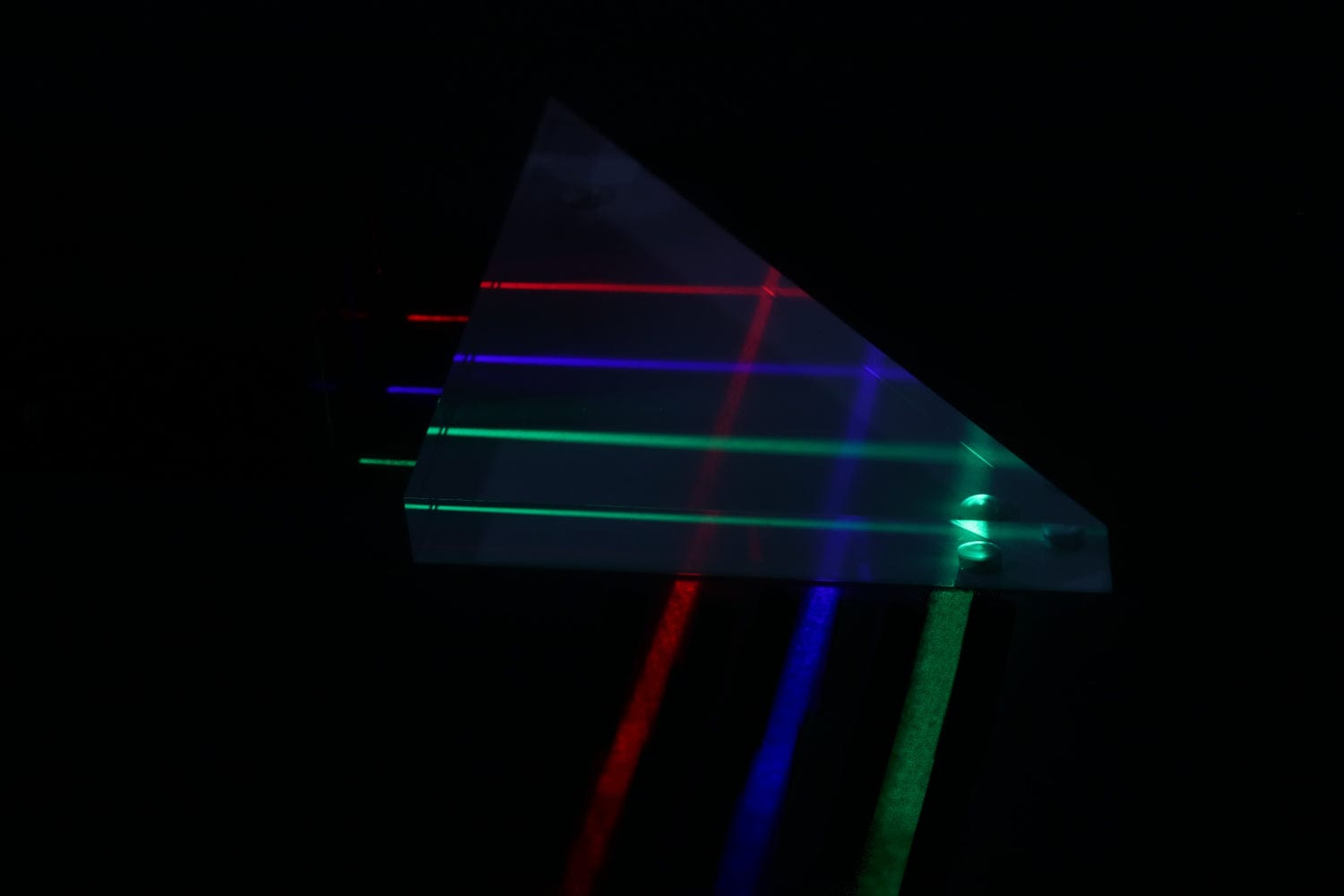

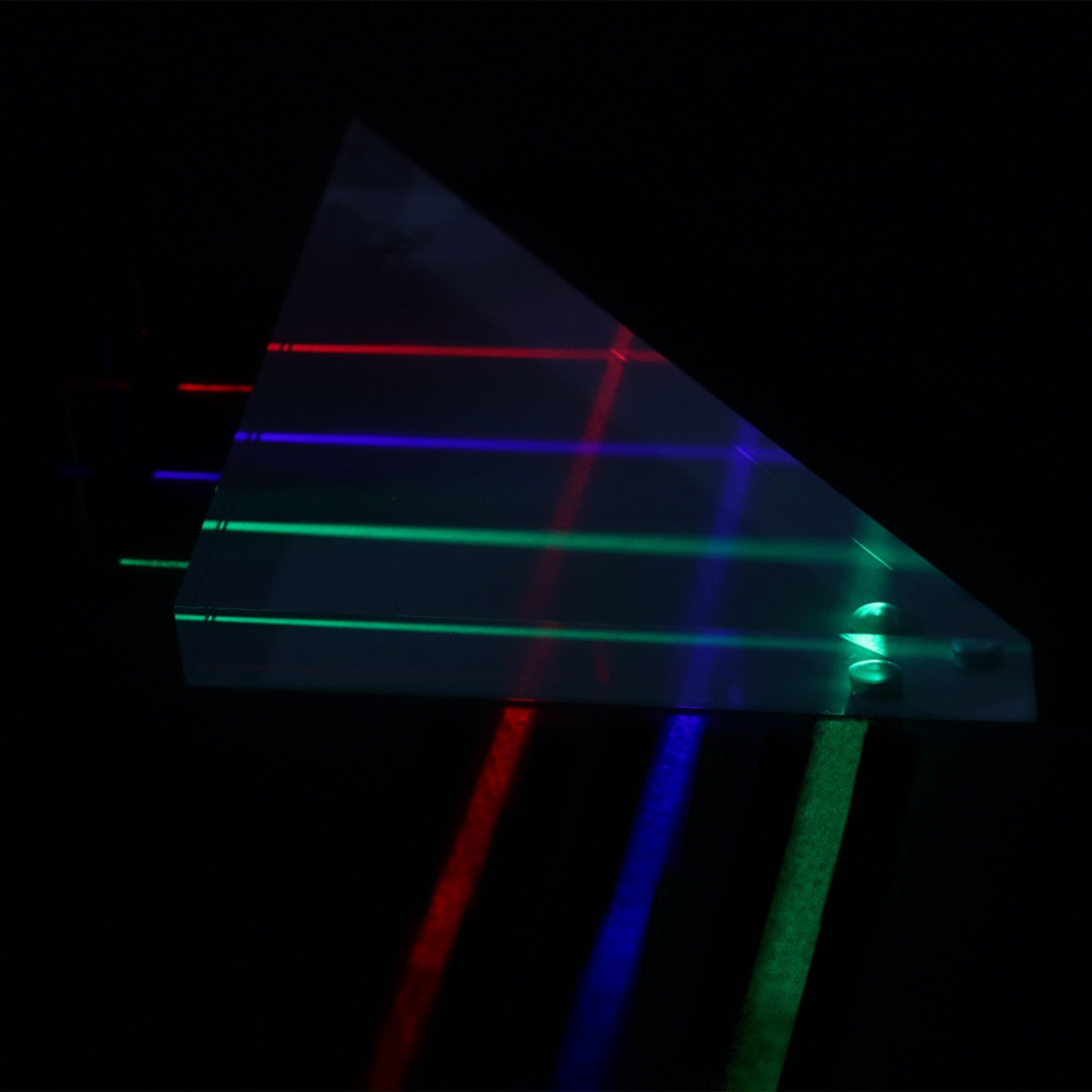

The set can be used to teach students about the critical angle, which is the angle at which light is refracted at the boundary between two materials in such a way that it is reflected back into the first material. This phenomenon is important in the fields of fiber optics and telecommunications, and can be easily demonstrated using the lenses and prisms in this set. By experimenting with different configurations of lenses and prisms, students can use Snell's law  and their understanding of optical components to learn about the relationship between the critical angle and the refractive indices of different materials.

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

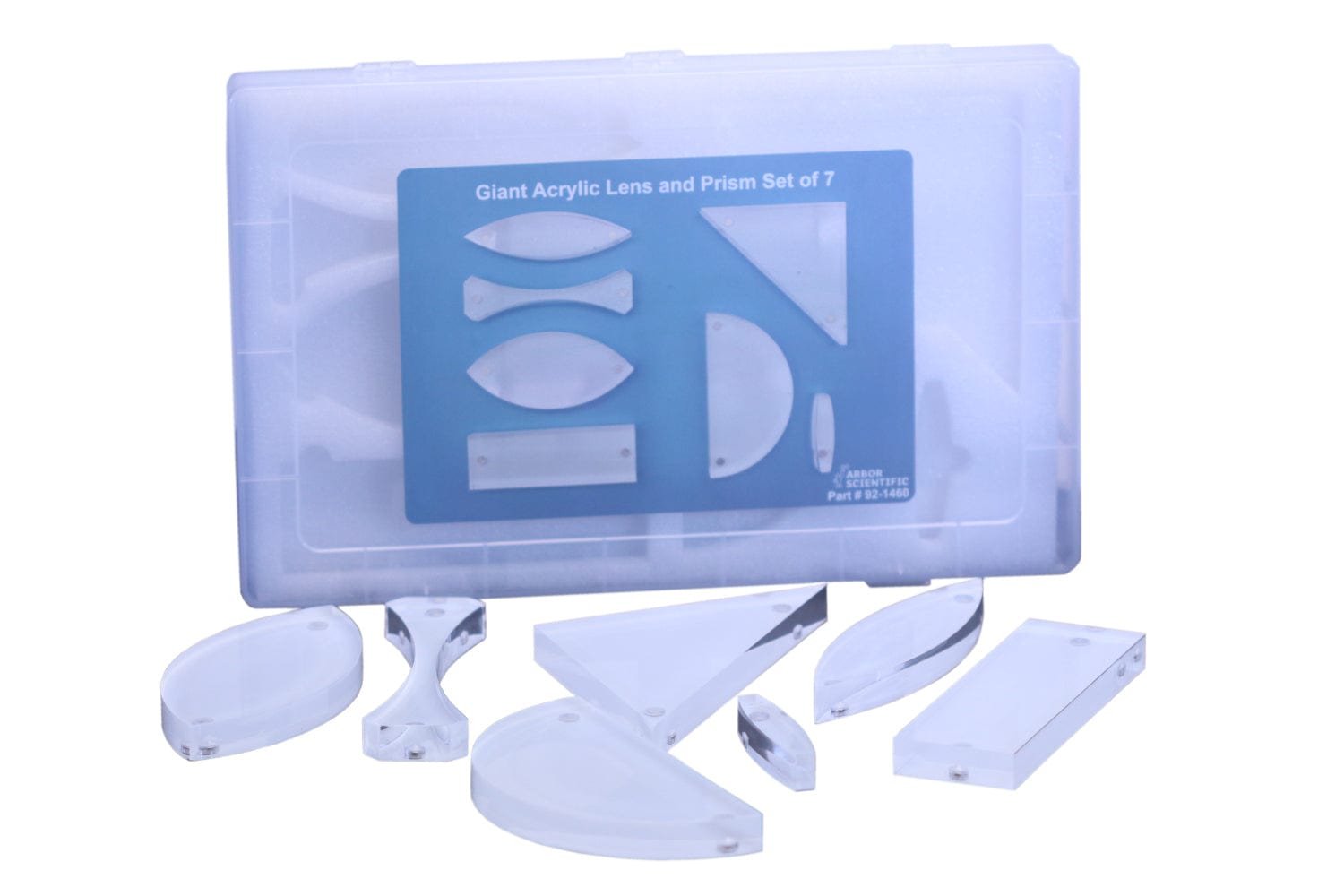

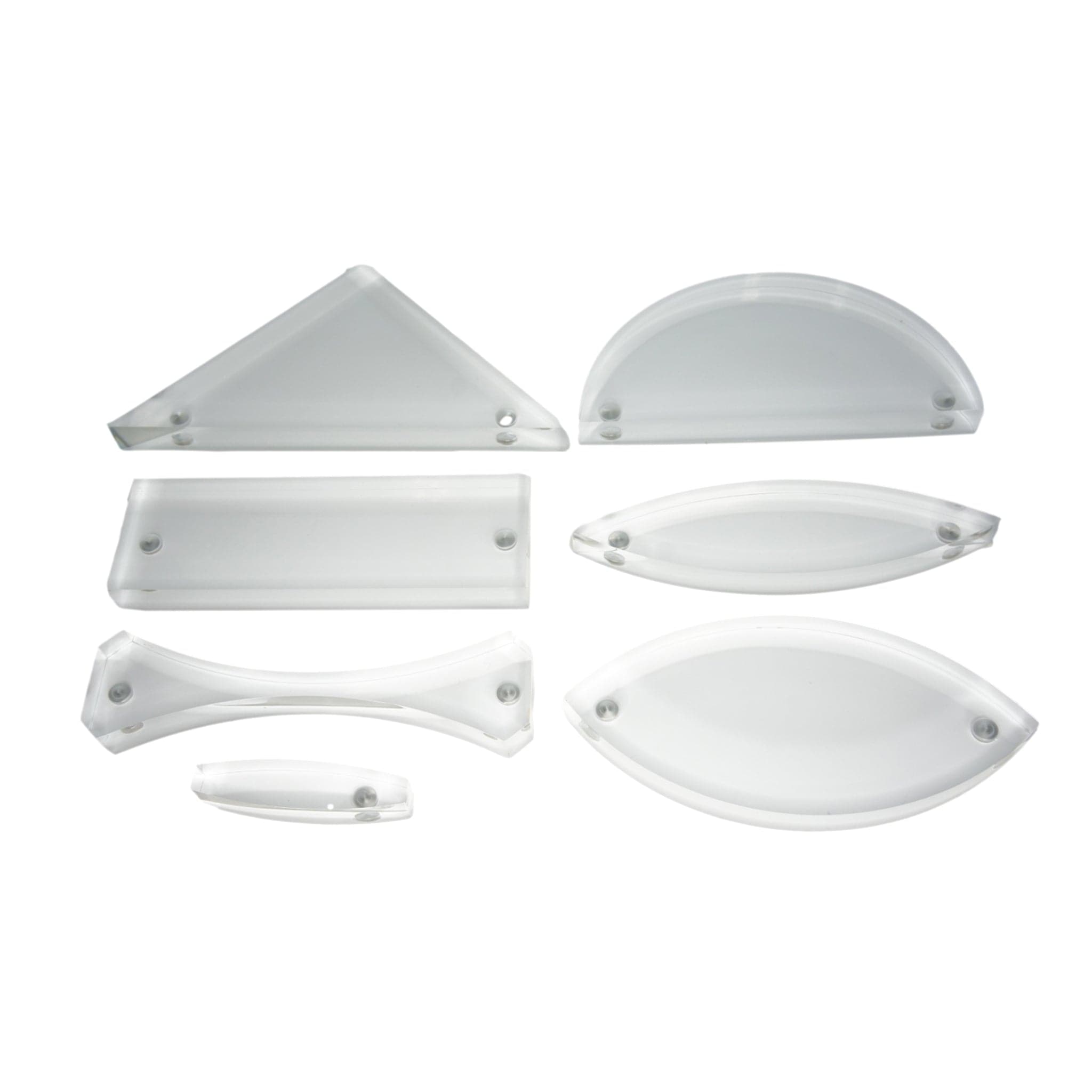

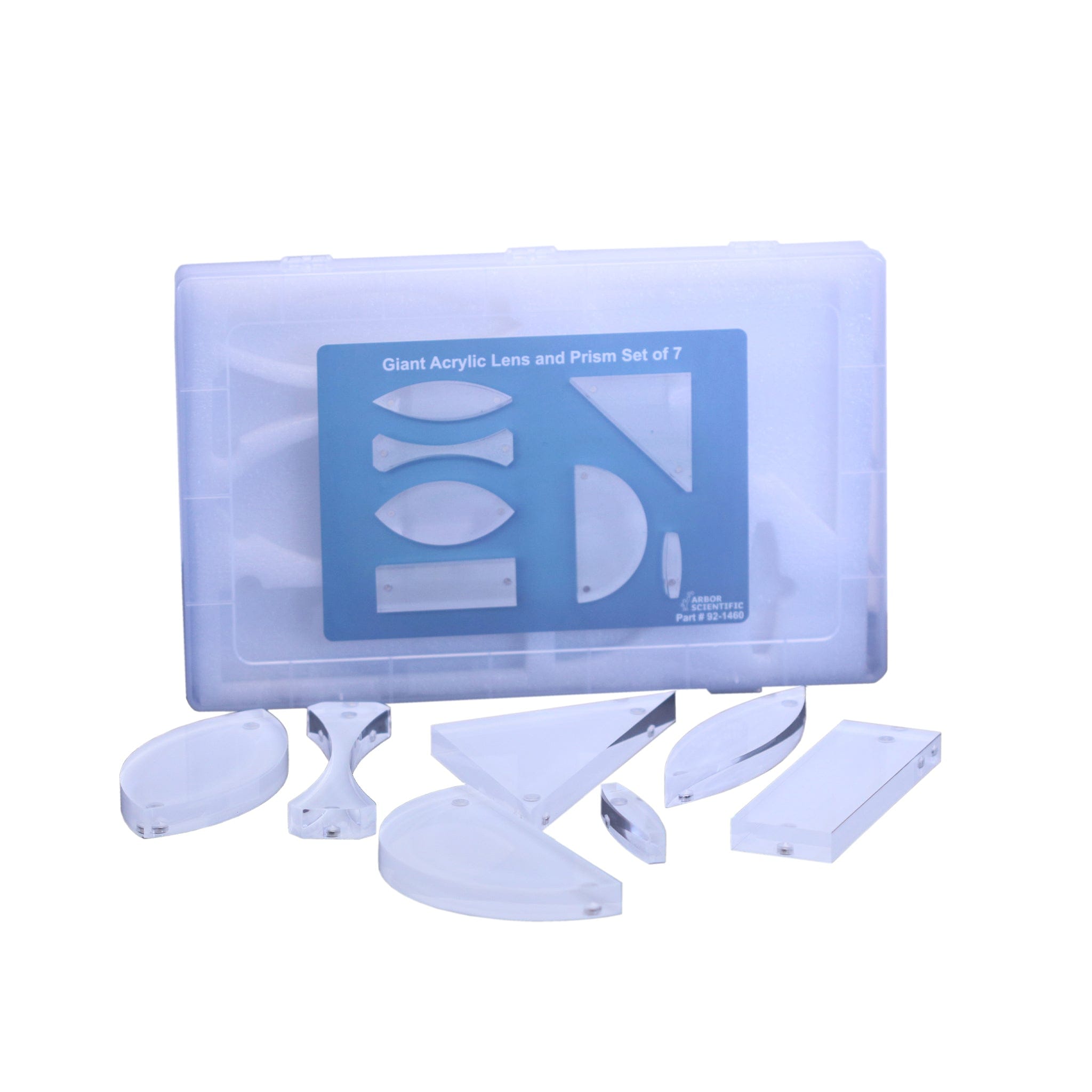

What’s Included

Lenses:

  • Thin double convex
  • Thick double convex
  • Double concave
  • Small double convex

Prisms:

  • Rectangular
  • Semicircular
  • Right angle

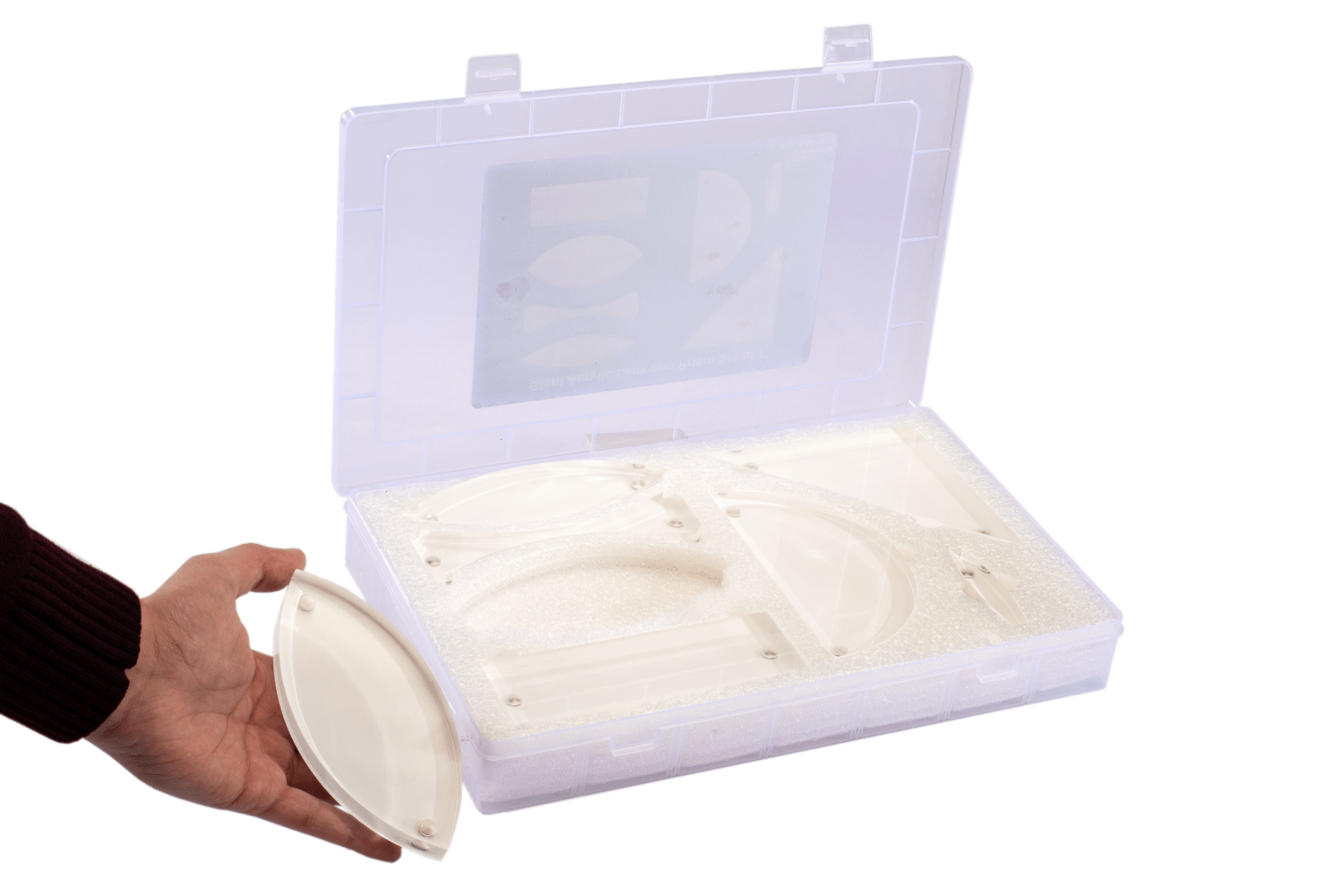

Durable storage case

Features & Specs

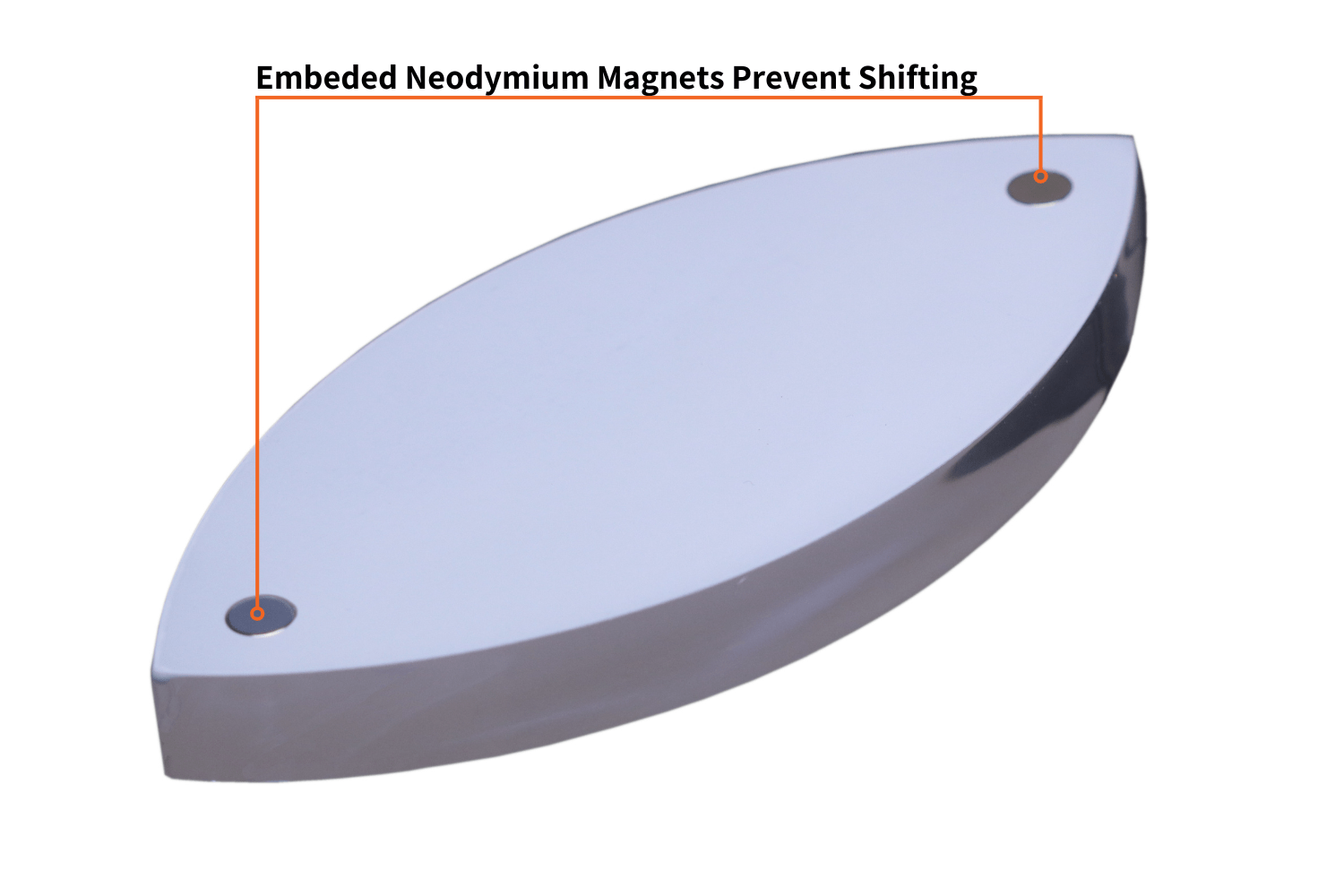

Each optical component has a thickness of 15 mm and is furnished with neodymium magnets mounted flush to the bottom.

Approximate lens focal lengths:

  • Thin double convex: +160 mm
  • Thick double convex: +120 mm
  • Double concave: -120 mm
  • Small double convex: +160 mm

Dimensions:

  • Thin double convex lens: 150 mm along lens line
  • Thick double convex lens: 150 mm along lens line
  • Double concave lens: 150 mm along lens line
  • Small double convex lens: 70 mm along lens line
  • Rectangular prism: 50 mm x 150 mm
  • Semicircular prism: 75 mm radius
  • Right angle: 128 mm side length, 180 mm hypotenuse
  • Case dimensions: 35 x 22 x 5 cm

Accessories

Order Qty Price Qty for Discount Discount Price Total Savings
Primary Color Light Sticks Primary Color Light Sticks Item # P2-8100
$30.00 6 $27.90

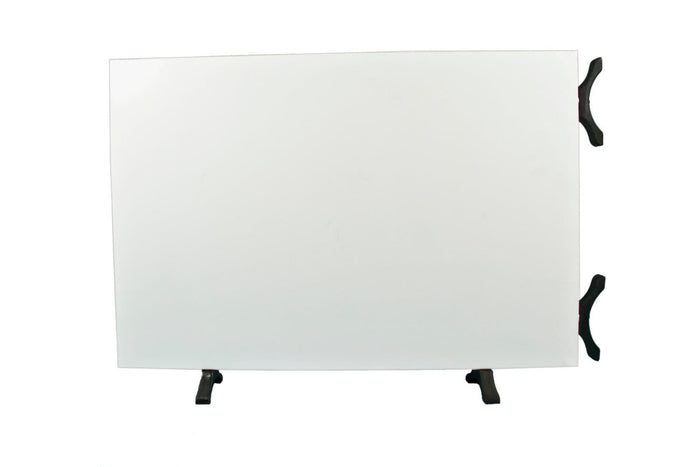

Magnetic Whiteboard Magnetic Whiteboard Item # P2-9585
