Additional Details

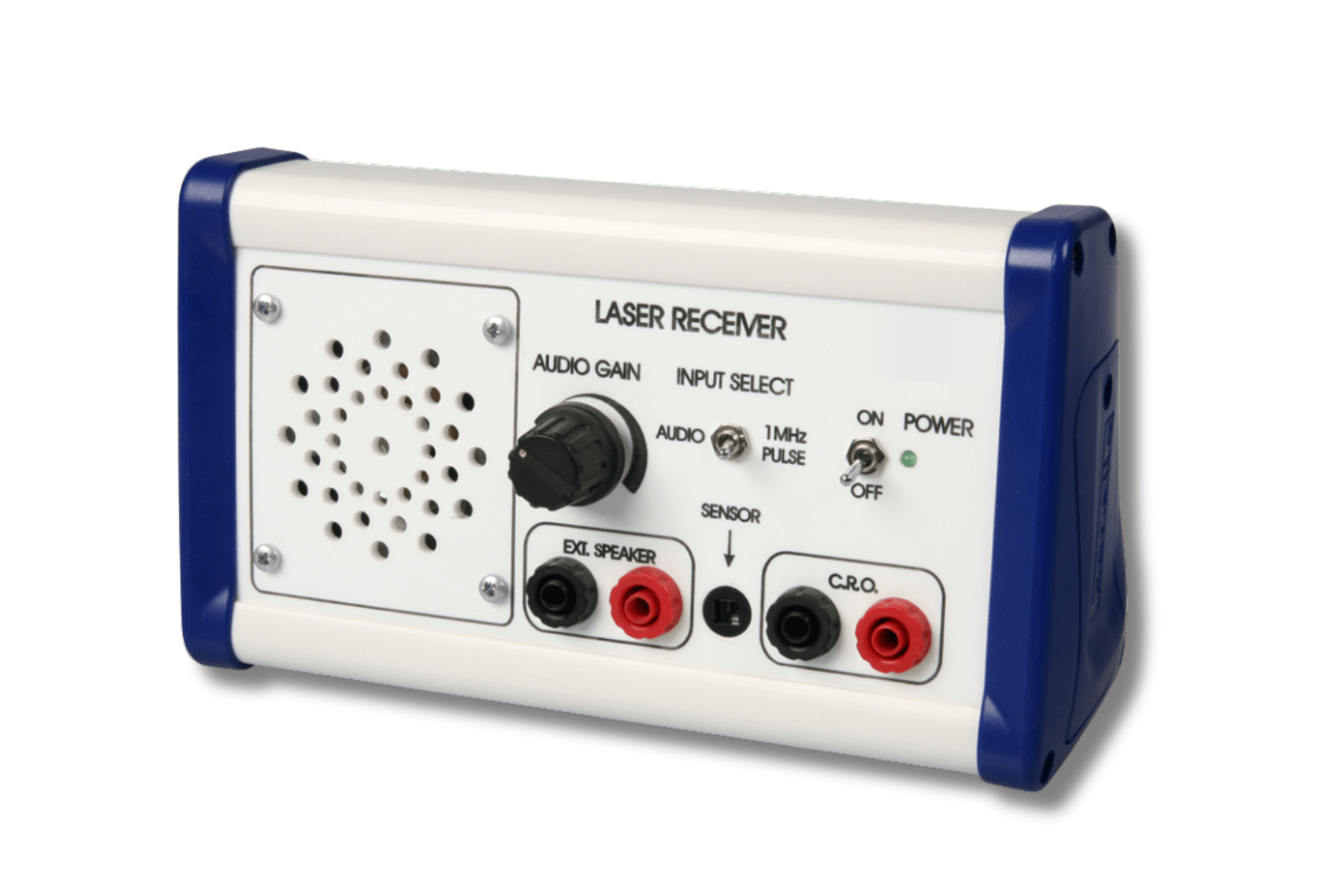

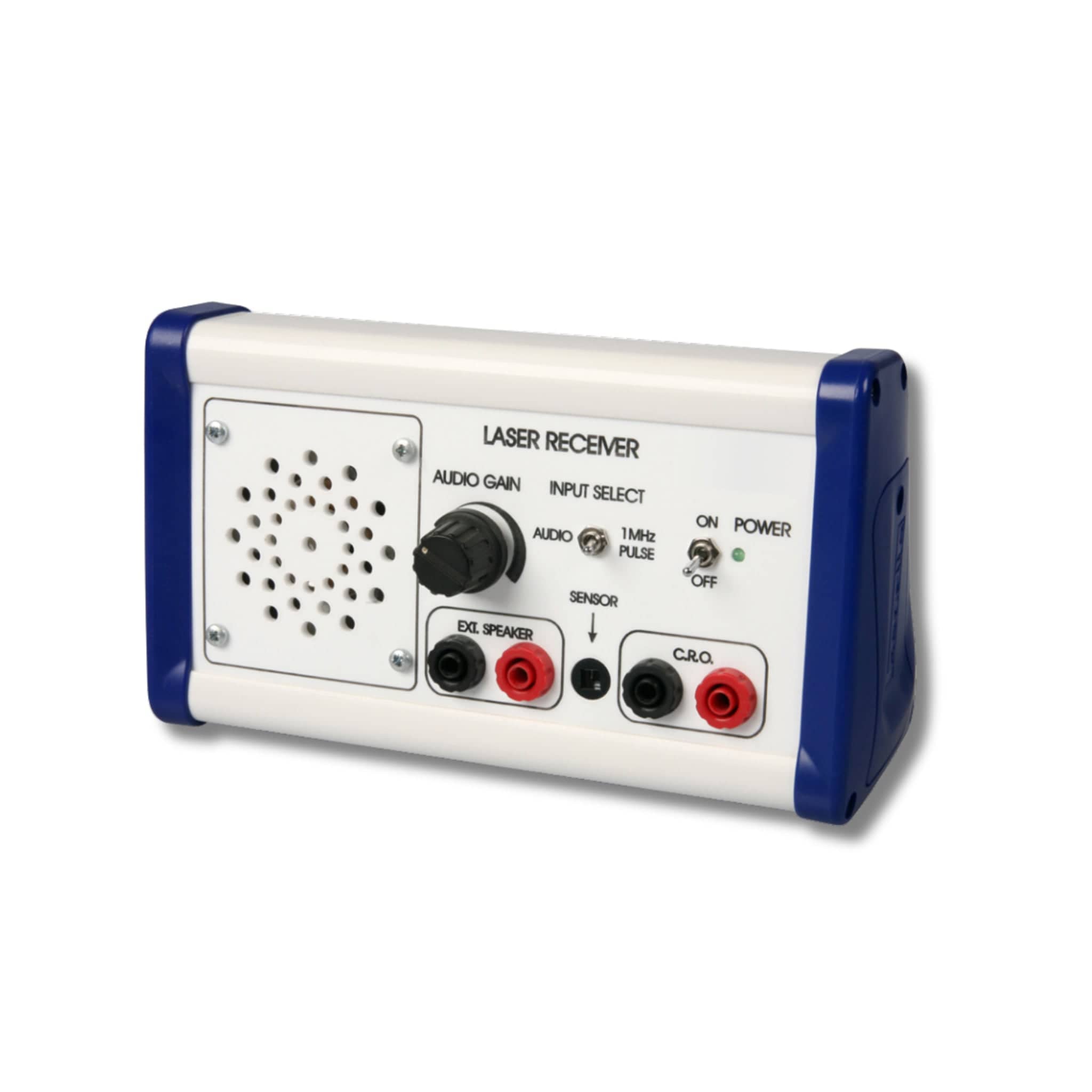

A dual-purpose receiver designed for use with the Dual Color Laser, the unit contains a planar chip photodiode tied to a 1Mhz amplifier for speed of light calculations along with an audio amplifier for demonstrating data transmission using light.
The unit is powered by a 9V DC supply and has a built in speaker for audio reception. The amplified audio is also brought out to 4mm sockets on the front panel for observation or connection to a secondary driver.
When using the laser receiver for speed of light calculations, the audio amplifier is disabled with the signal brought to the front panel only for monitoring using an oscilloscope.
The unit is powered by a 9V DC supply and has a built in speaker for audio reception. The amplified audio is also brought out to 4mm sockets on the front panel for observation or connection to a secondary driver.
When using the laser receiver for speed of light calculations, the audio amplifier is disabled with the signal brought to the front panel only for monitoring using an oscilloscope.
Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.
What’s Included
- 1 x Laser receiver unit
- 1 x 9V PSU
- 1 x instructions for use
Features & Specs
- Dimensions: L x W x H: 190 x 65 x 110
- Weight: 400g
- Input Voltage: External 9V D.C. +ve pin (Included)
- Frequency Range: 1MHz / Audio frequencies switchable
Accessories
Order Qty | Price | Qty for Discount | Discount Price | Total Savings | ||||
---|---|---|---|---|---|---|---|---|

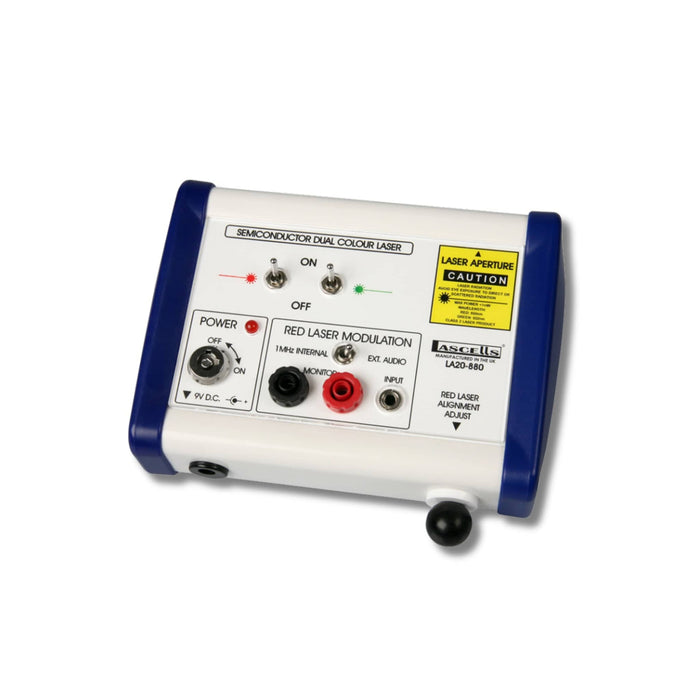

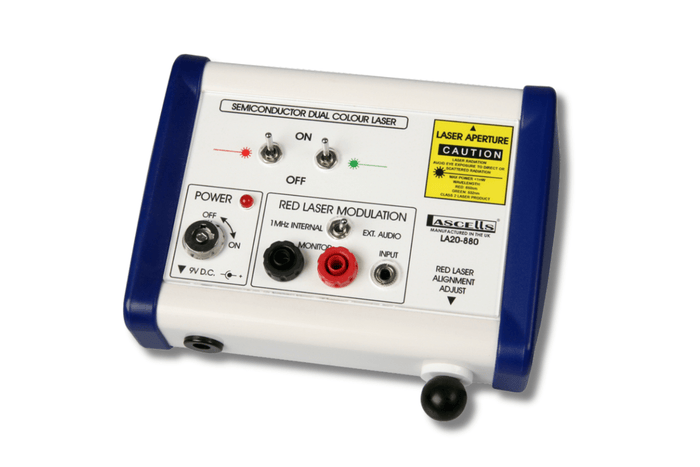

Dual Color Laser with Modulation Item # 92-7260 |
|
|
