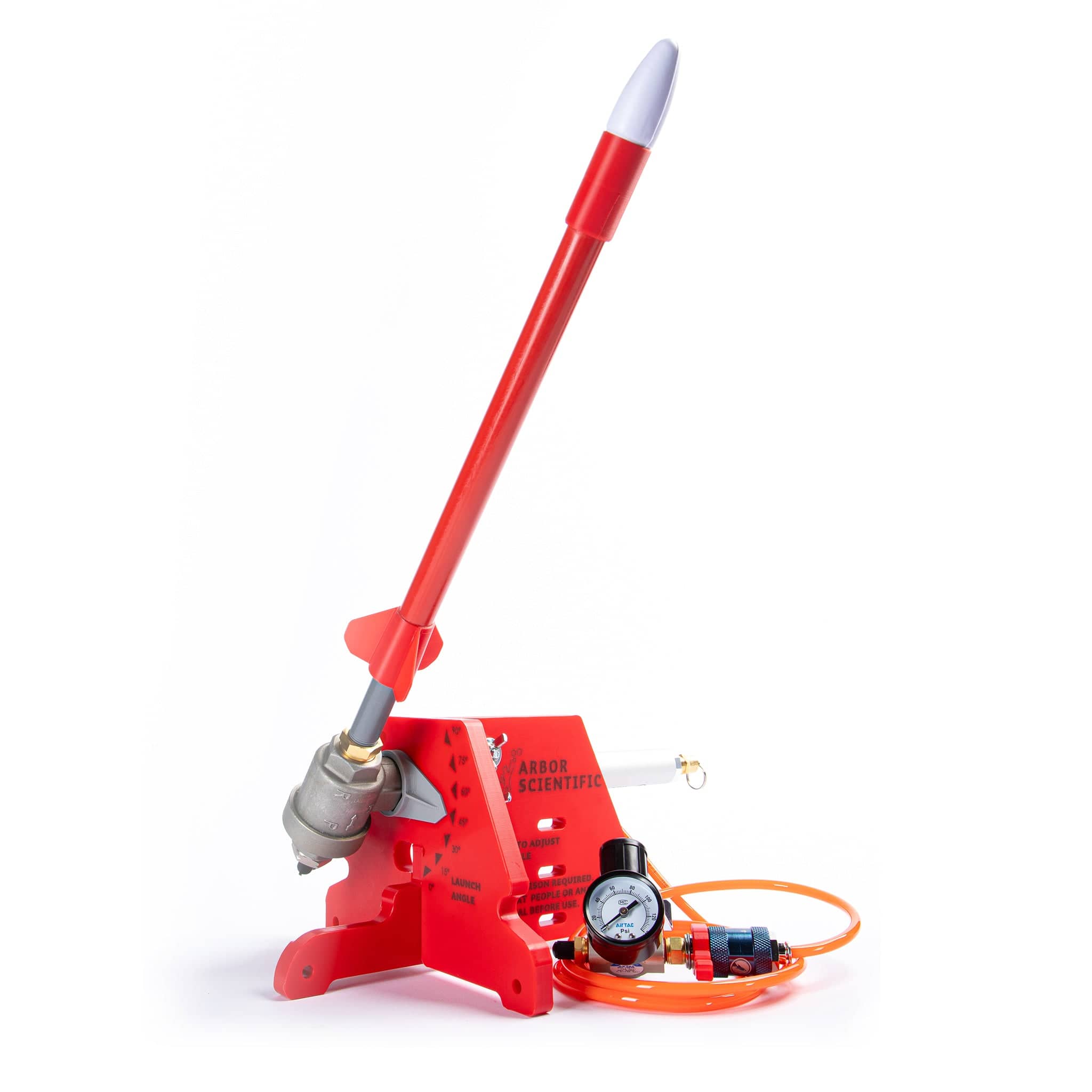

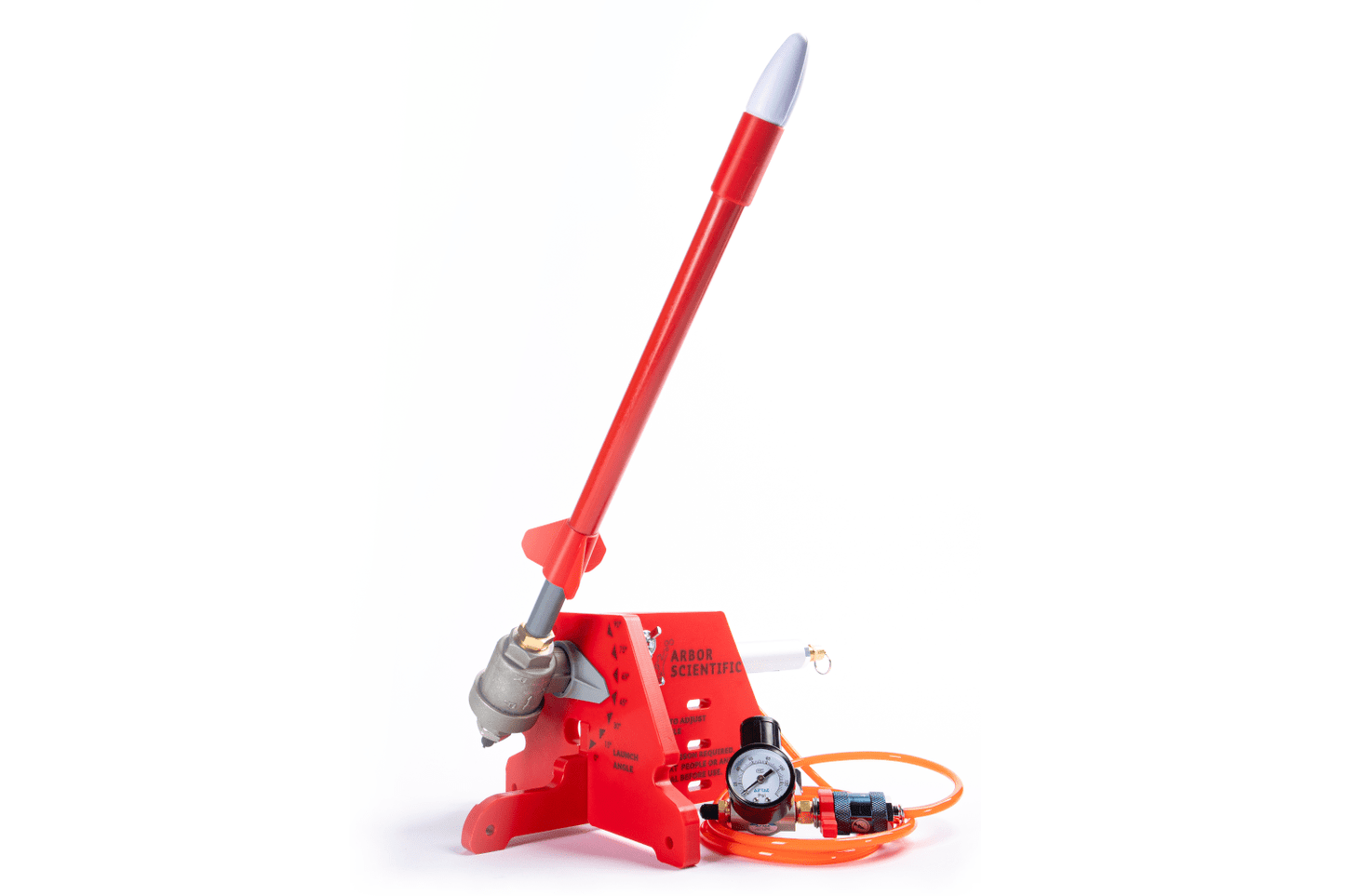

Precision Air-Powered Projectile

Item # 94-2800

Regular price $199.00
Sold out
Shipping calculated at checkout.

Get up, get out, get launching! Quantitatively exploring projectile motion on this scale has never been more engaging, safe, and easy. The Precision Air-Powered Projectile will launch consistently time and time again. Trial after trial, your experiments will be repeatable and fun. There’s no guesswork with this system.

WARNING: Cancer & Reproductive Harm -- www.P65Warnings.ca.gov

In Stock

Additional Details

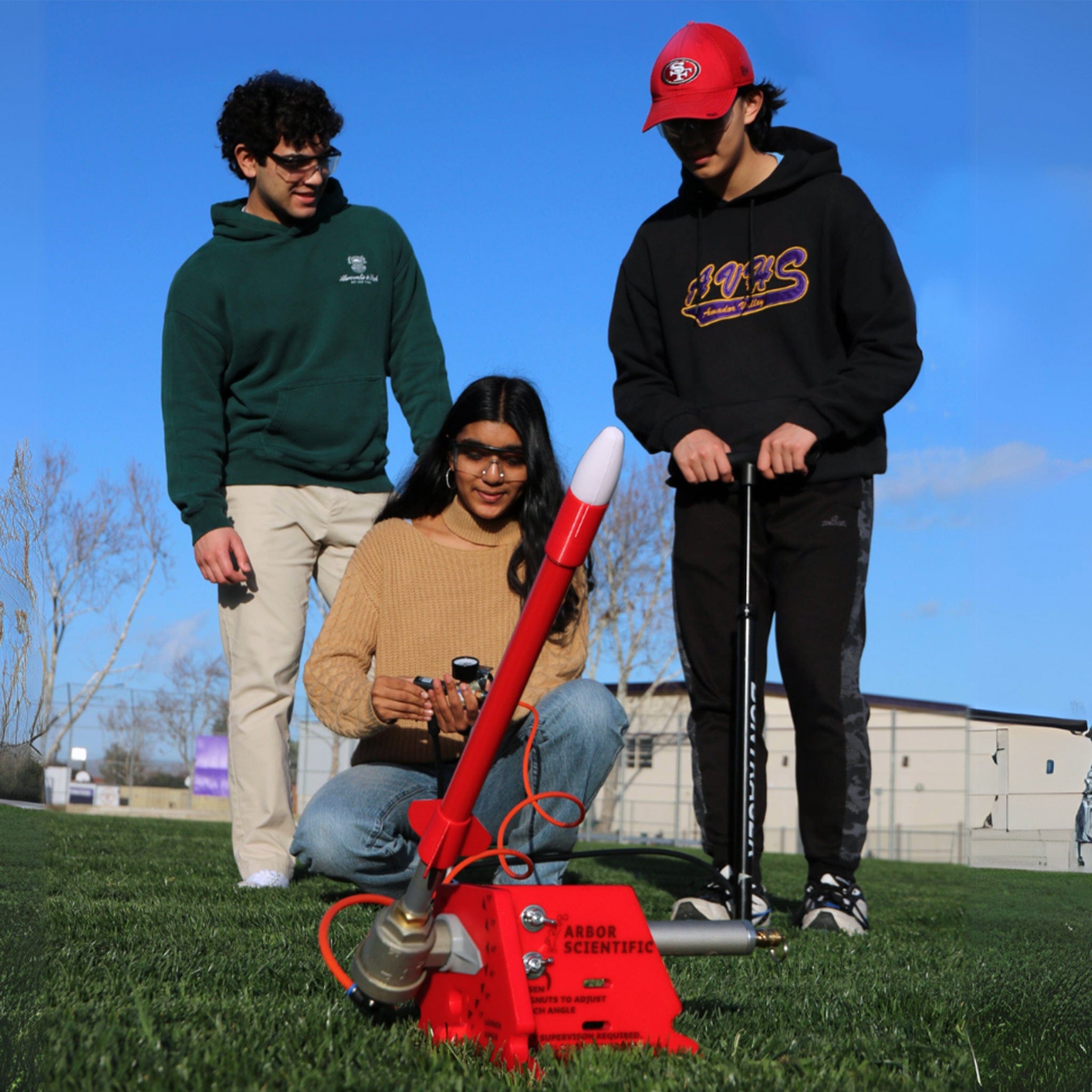

Take your classroom outside and run quantitative projectile motion experiments on a football field scale!

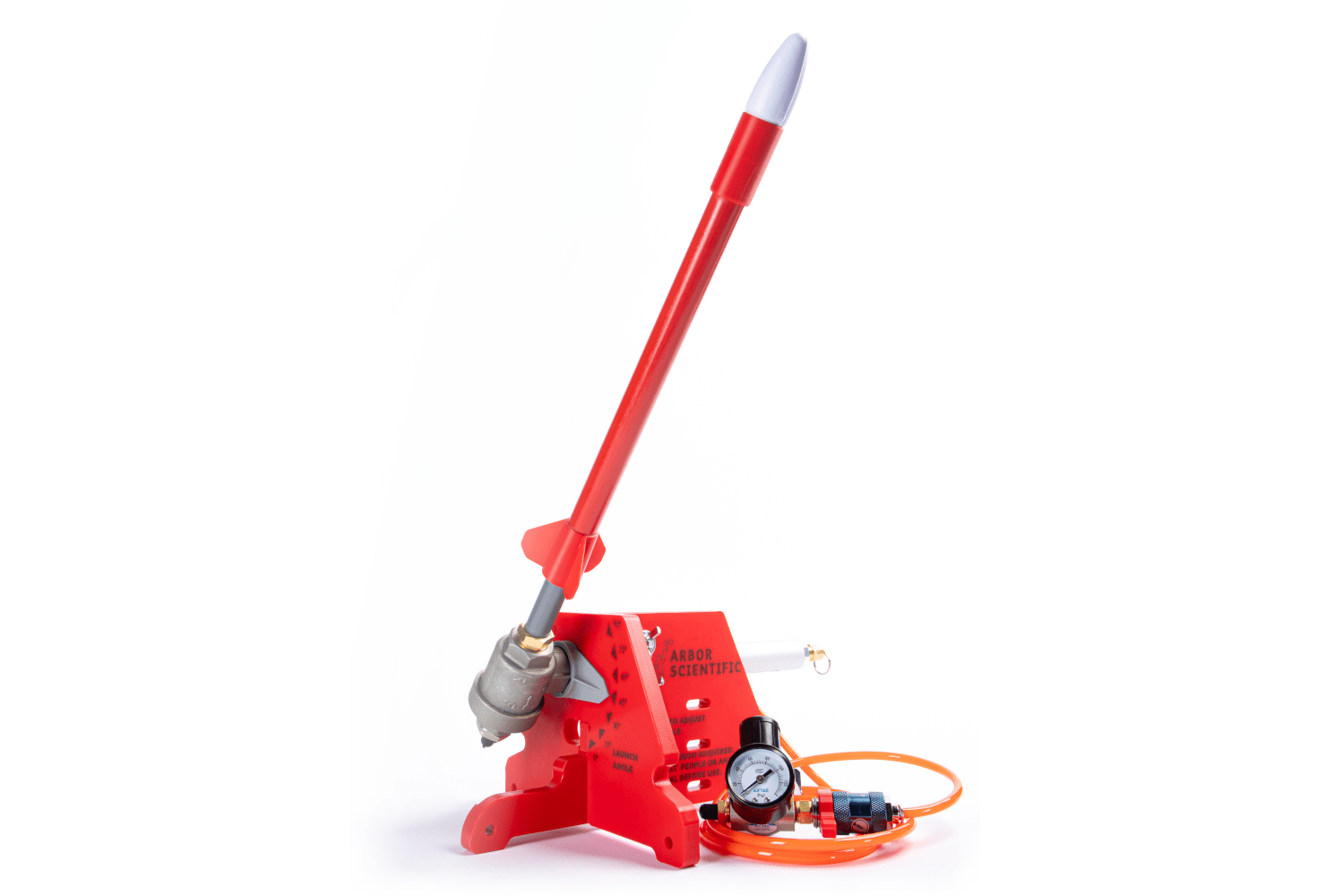

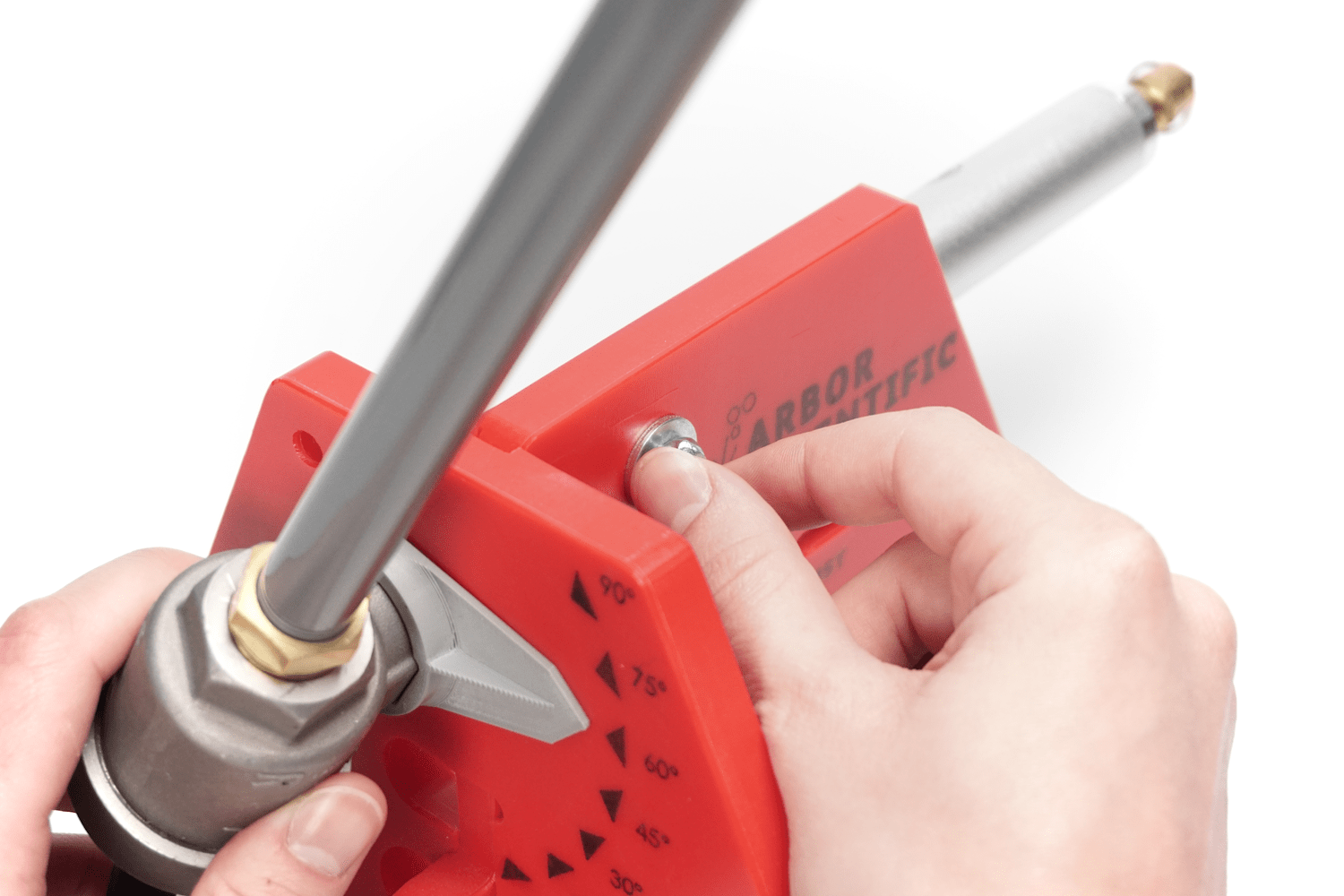

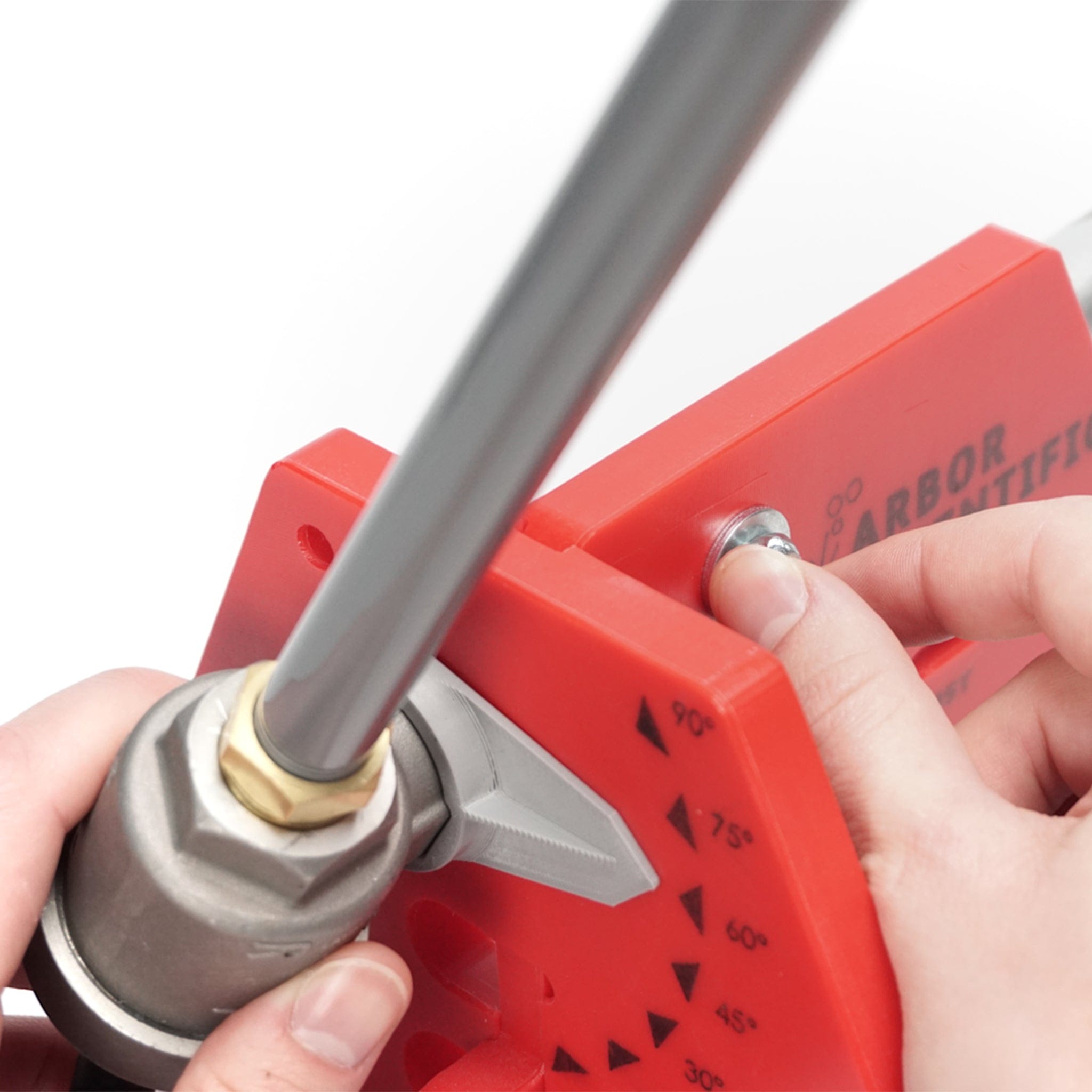

Engaging, safe, and easy to use, the Precision Air-Powered Projectile will launch consistently time and time again. The built-in regulator and slide valve allow you to launch on command at the desired pressure every time. The innovative slide valve and tubing make it easy to engage the rocket while the operator is at a safe distance. With the safety lockout clip and pressure release valve, you can rest assured that the rocket will only launch when desired. Angle adjustments are made easy with the integrated protractor, and the solid base is readily secured to minimize the effect of recoil. The Precision Air-Powered Projectile is designed to promote safe procedures for your students. It’s THE fun, engaging, and safety-conscious system for investigating projectile motion! Look no further for the best air-powered projectile launching system available! The Precision-Air-Powered Projectile is a great leap forward for both consistency and safety.

Consistency:

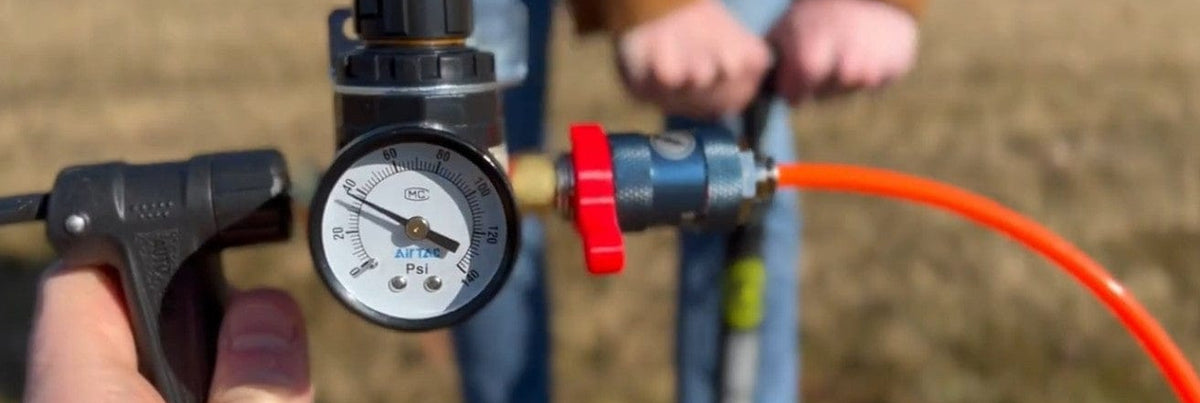

The pressure regulator ensures that the pressure you set is the pressure you get; the first time and every time. The easy to read gauge allows you to set the mark, and the safety valve makes over pressurizing a non-issue.


Safety:

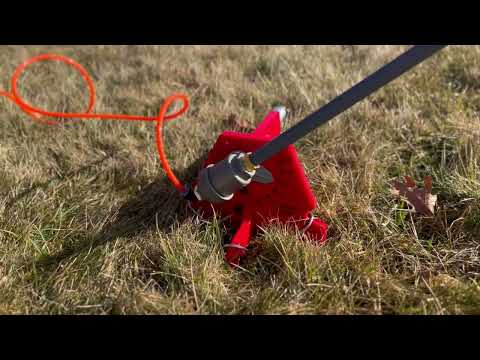

The launch base is designed to be firmly staked to the ground. When you release the rocket, you’ll know where it’s going! Additionally, the pressurized vessel is external to the launch tube. Coupled with the pressure release valve, it’s a simple operation to cancel a launch without discharging the launch tube. The bright red rocket body is easy to see – a must whenever objects are flying through the air in the name of science.

Products being sold are not toys. They are for Educational / Laboratory use only. They are not for use by children 12 and under.

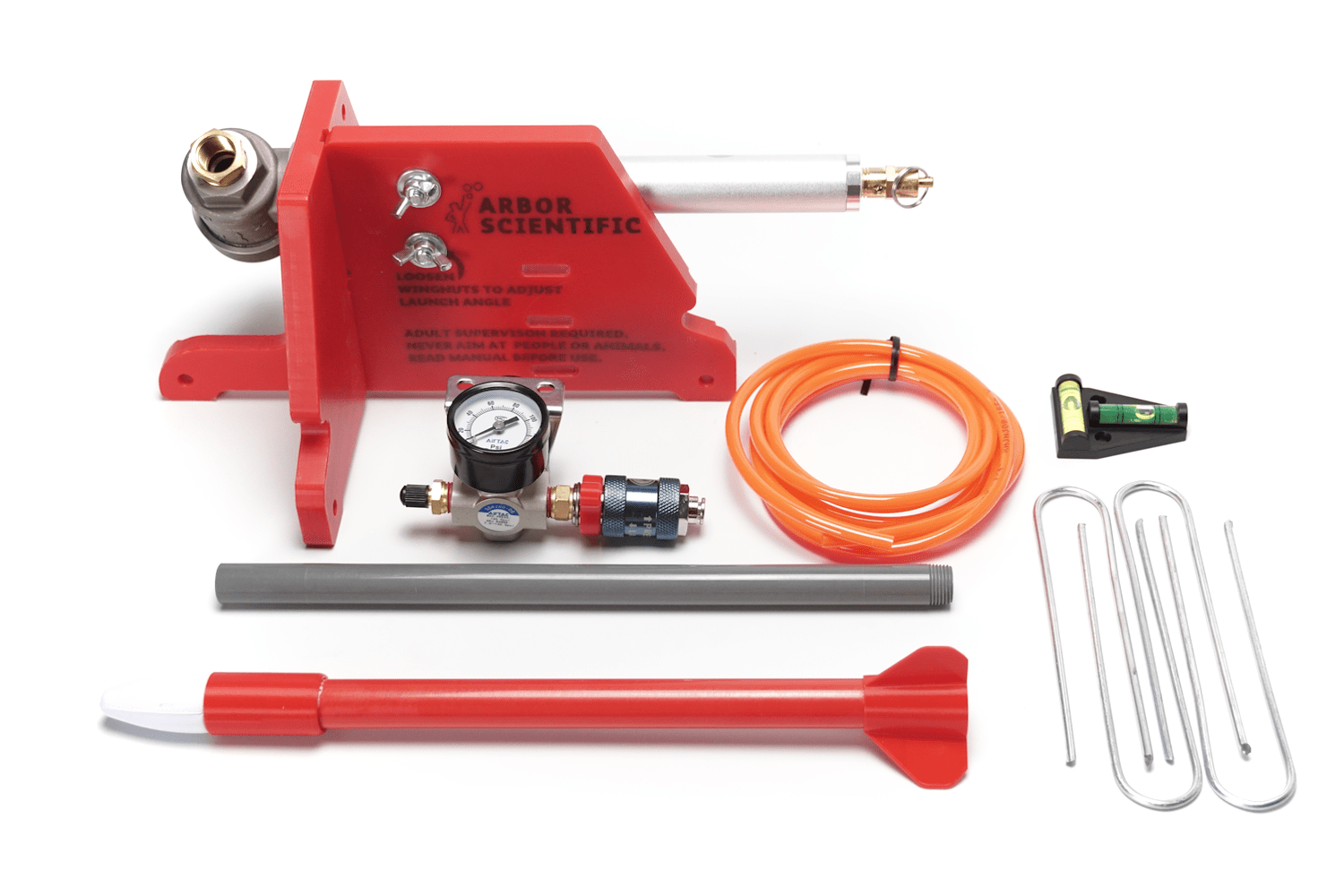

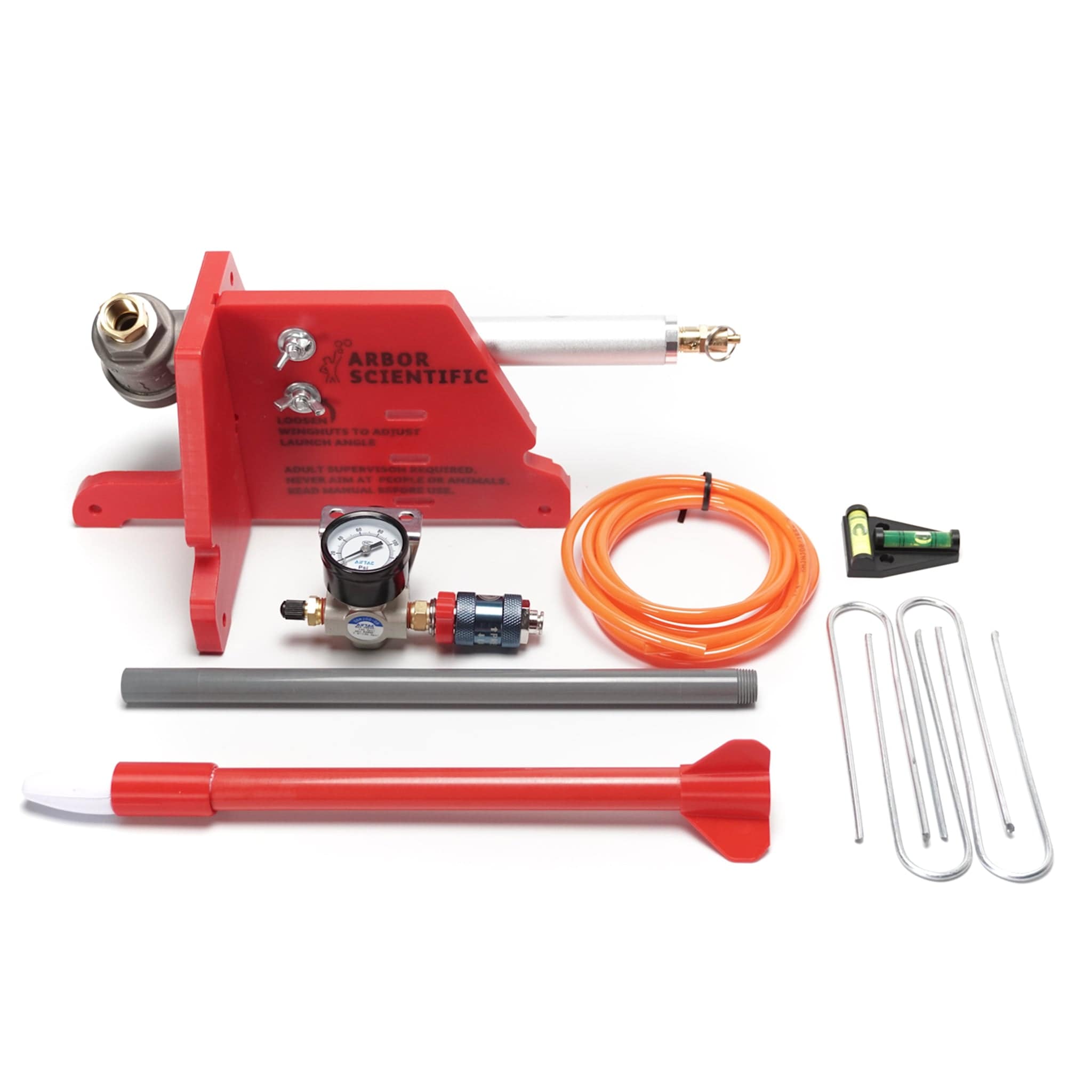

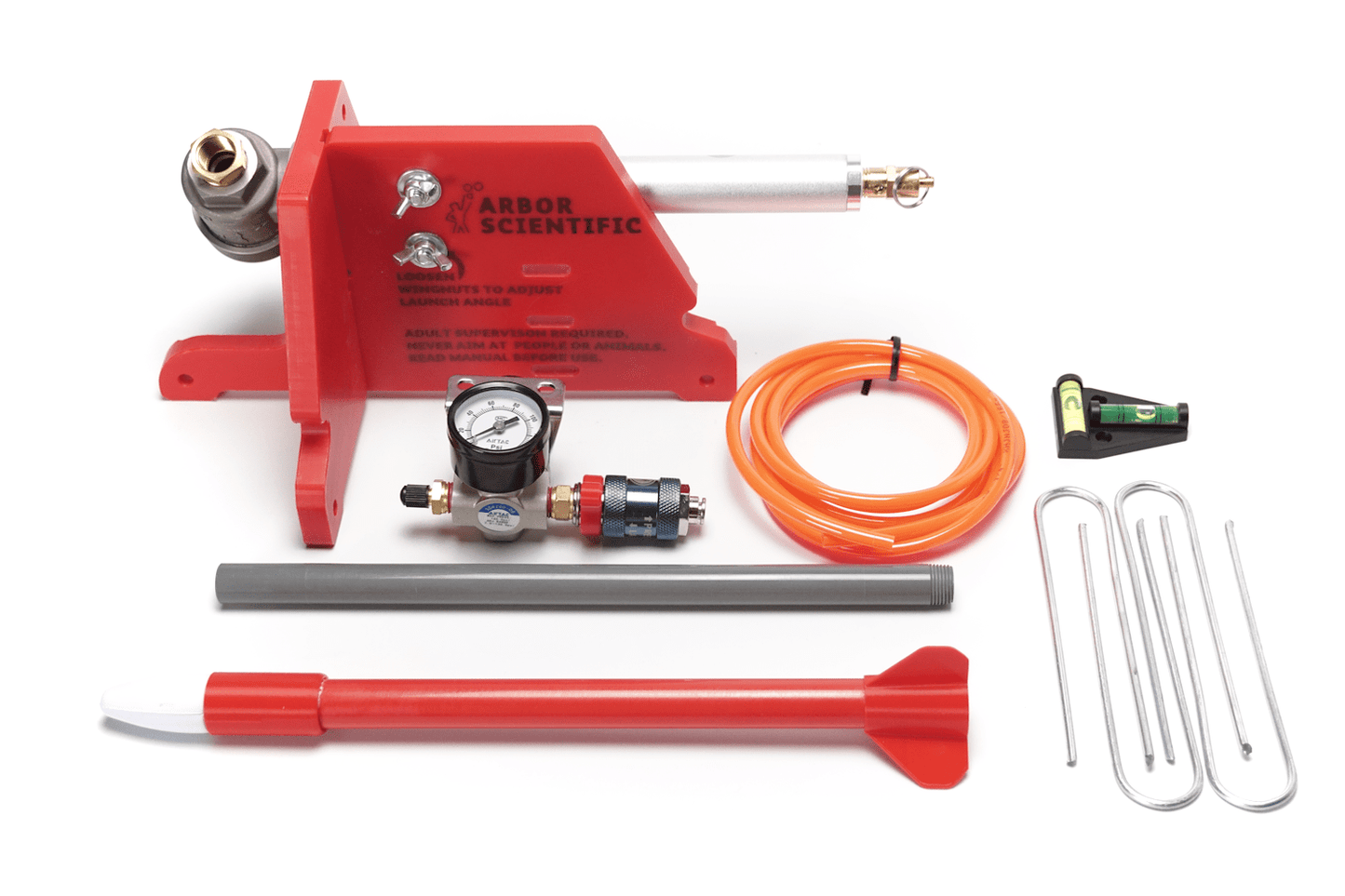

What’s Included

  • Red launch base and air tank assembly
  • Orange pneumatic tubing for connecting launch valve
  • Regulator/slide valve assembly
  • Launch tube
  • Rocket with replaceable nose cone
  • Four ground stakes to secure base
  • T-Level

Features & Specs

Features

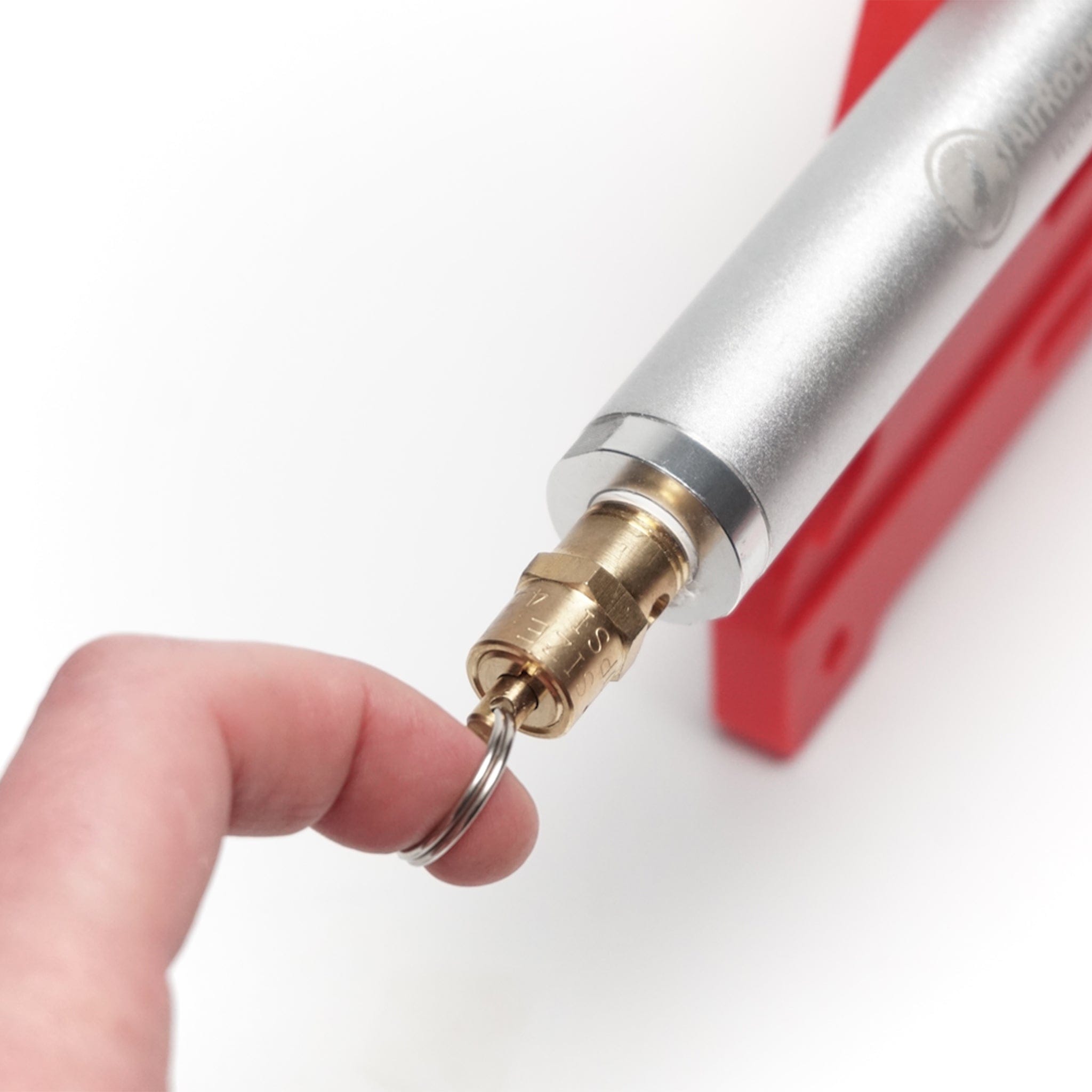

  • Safety release valve will ensure the pressure tank cannot be over-pressurized. Manual release is possible to safely depressurize without launching rocket.

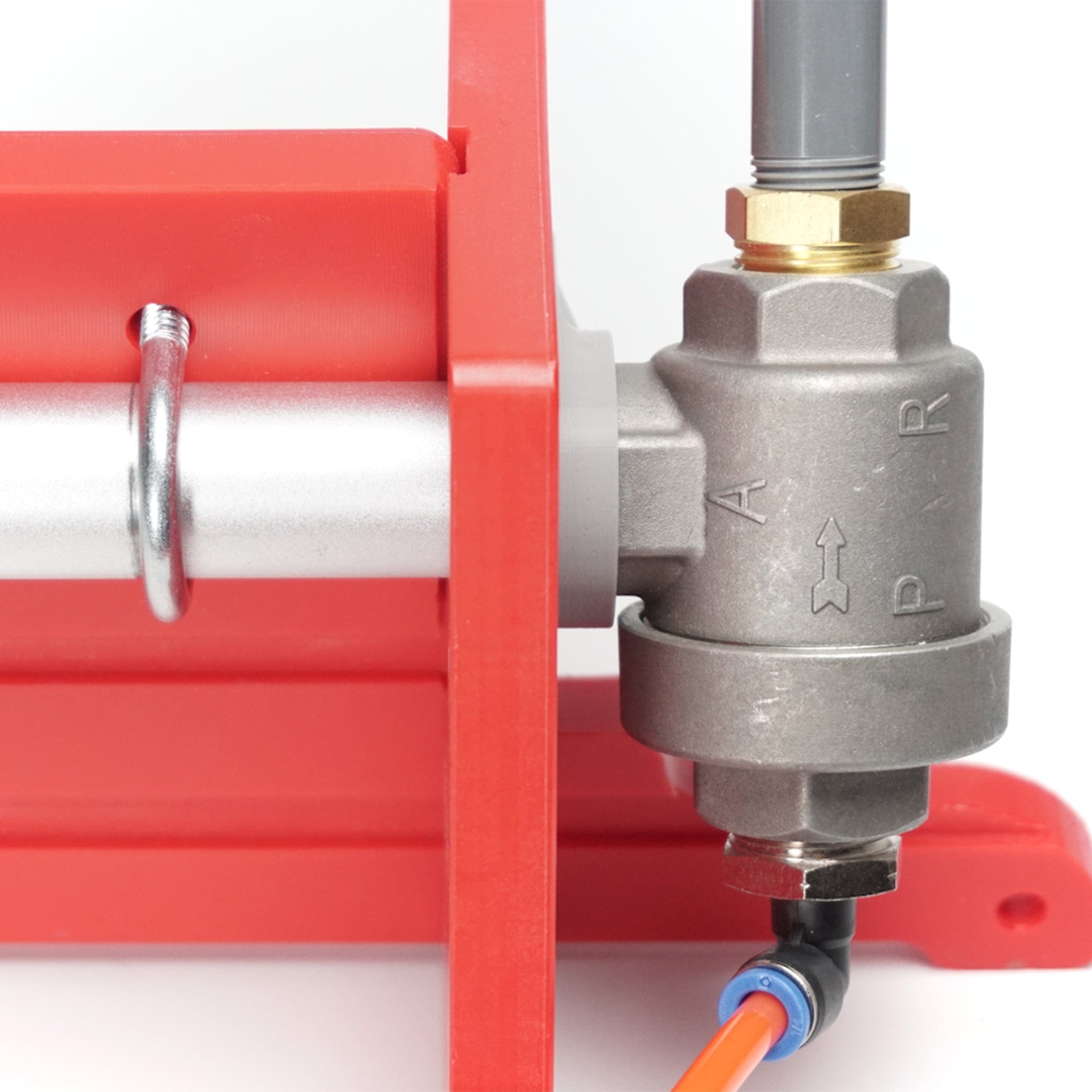

  • Launch from a distance using the 2-meter orange pneumatic tube to actuate the exhaust valve.

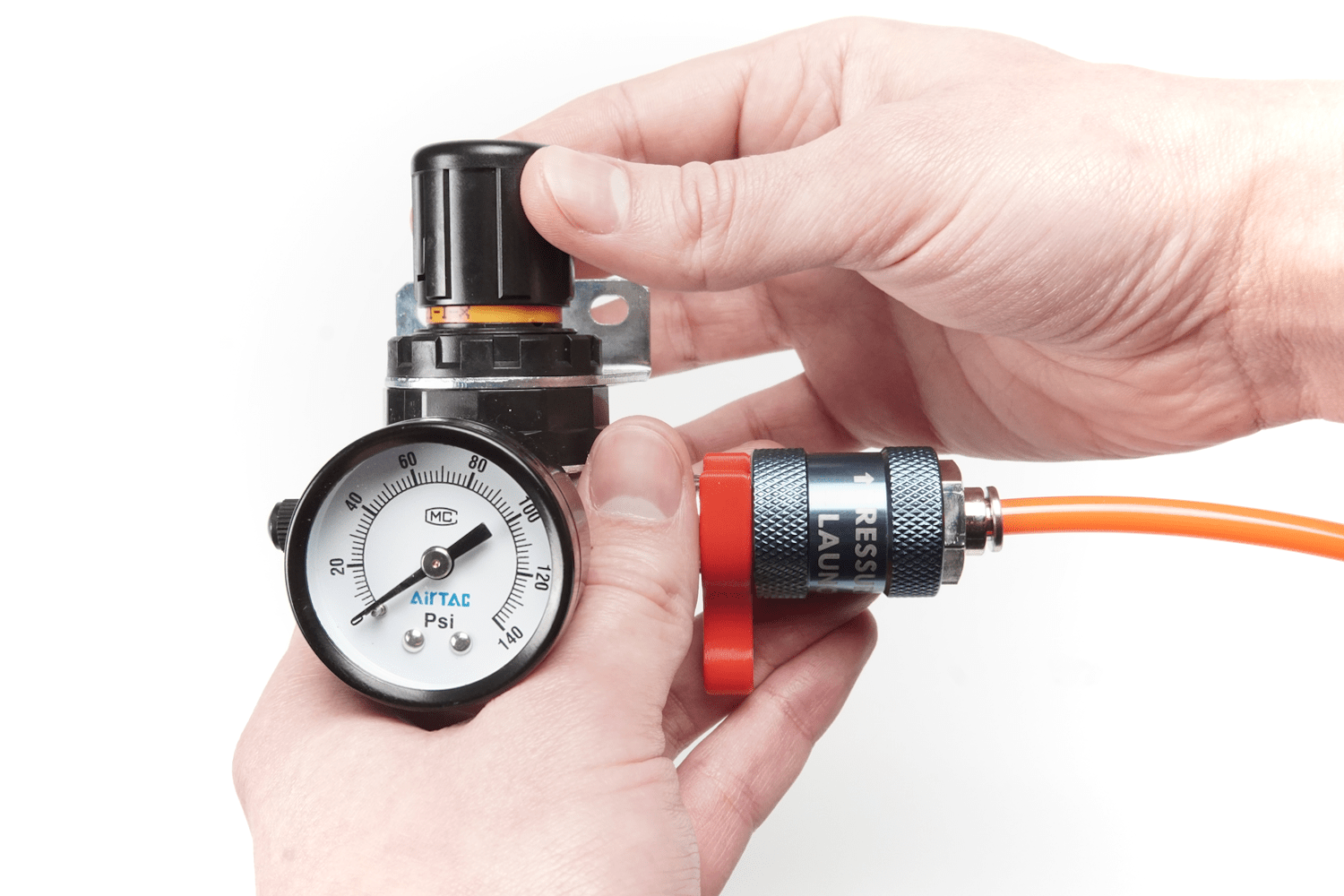

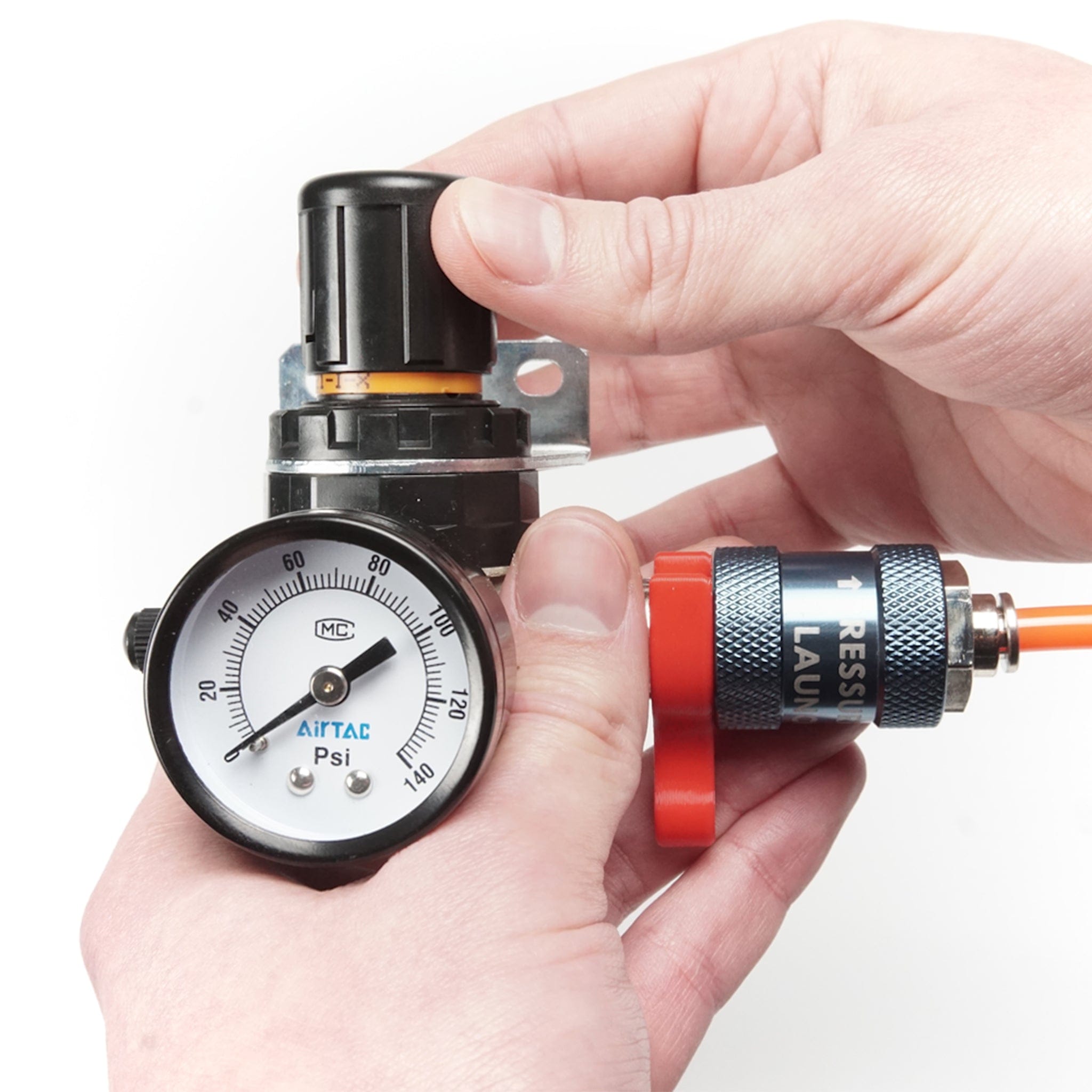

  • Pressure regulator allows for consistent launch pressures every time.
  • Slide valve allows users to launch on command from a safe distance, improving accuracy in flight timing.
  • Schrader valve for pressurization will connect to virtually any bicycle pump.
  • Brightly colored rocket body is easy to spot against the sky.

Specifications

  • Launch pressure range: 30 psi min to 130 psi max
  • Pressure inlet: standard Schrader-type valve
  • Regulator: 0 - 150 psi, lockable adjustment knob
  • Orange pneumatic polyurethane tubing: ¼" diameter, 2  m long
  • Fittings on slide valve and exhaust valve are push-to-connect pneumatic fittings

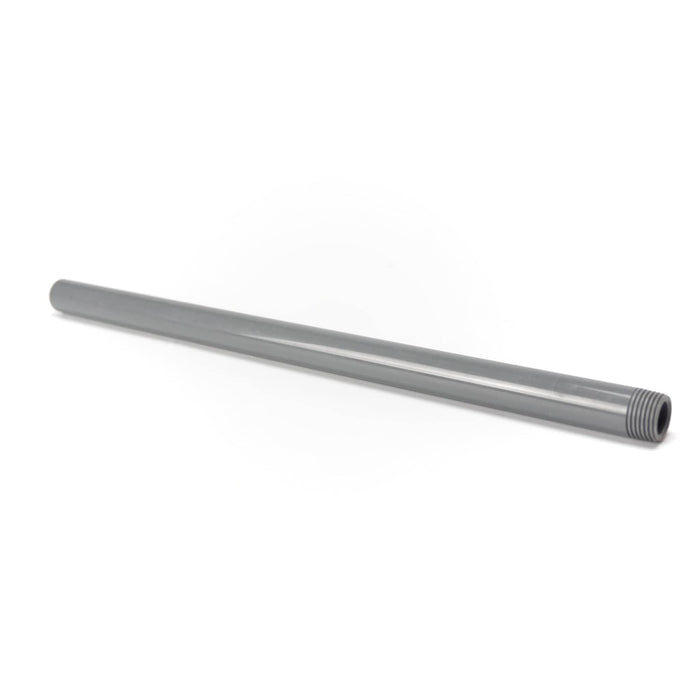

  • Launch tube: 12" long, 3/8" NPT thread, approx. 0.875" diameter
  • Rocket: overall length approx. 13", nylon body, 3D-printed fins and adapter, replaceable foam nose cone

Accessories

Order Qty Price Qty for Discount Discount Price Total Savings

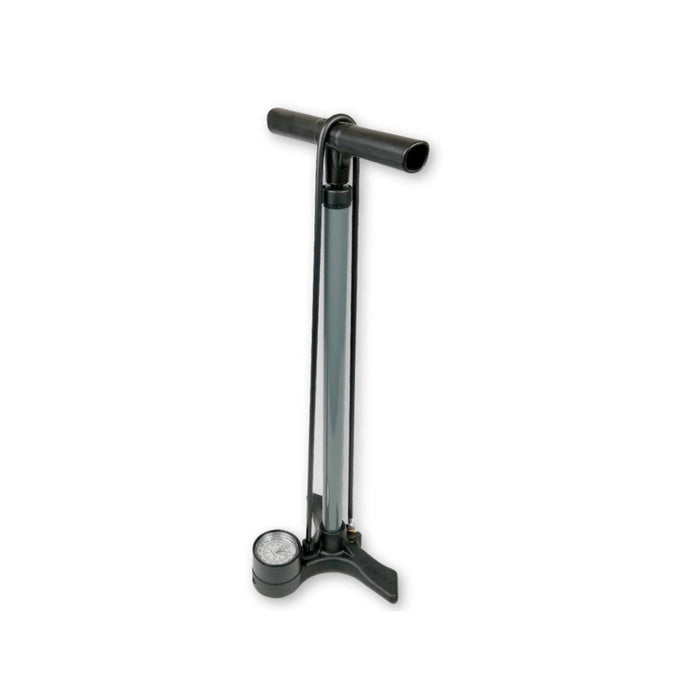

Heavy-Duty Air Pump with Gauge Heavy-Duty Air Pump with Gauge Item # P4-2223
$51.45 6 $48.50
Safety Glasses Safety Glasses Item # C5-1030
$4.95 12 $4.50

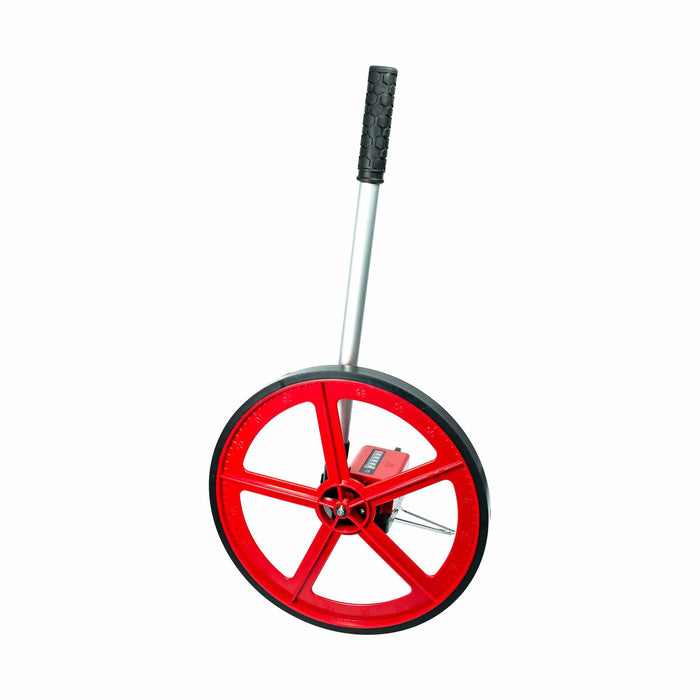

Deluxe Trundle Wheel Deluxe Trundle Wheel Item # 01-8020
$59.00 6 $55.50
Digital Stopwatch Timer Digital Stopwatch Timer Item # 52-3200
$8.75 10 $8.10

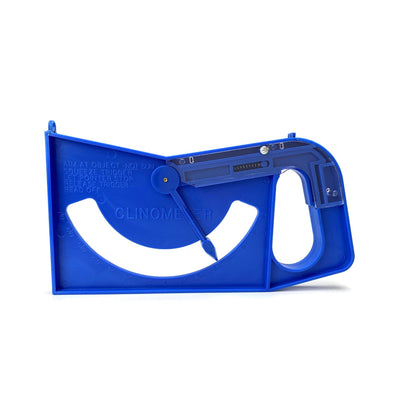

Altitude Finder Altitude Finder Item # P4-2250
$38.33 12 $36.00

Replacements

Order Qty Price Qty for Discount Discount Price Total Savings

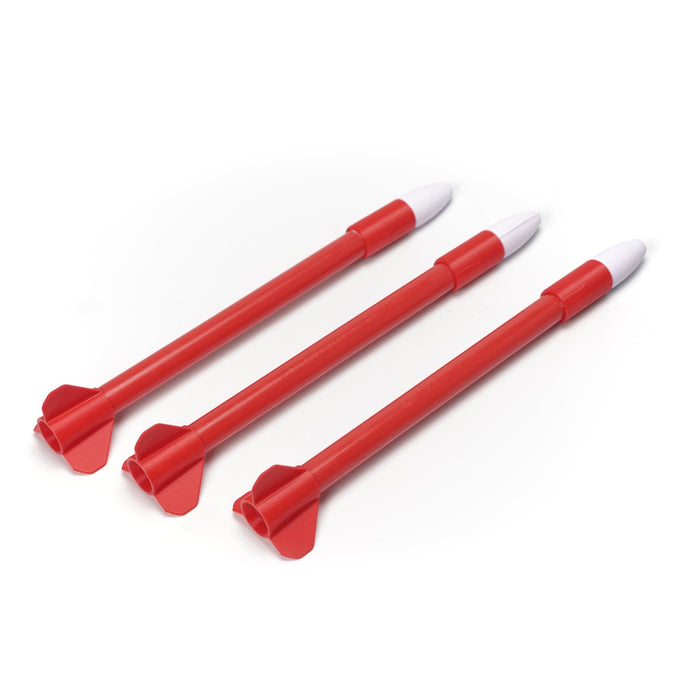

Rockets for Precision Air-Powered Projectile, 3/pk Rockets for Precision Air-Powered Projectile, 3/pk Item # 94-2801
$18.00 4 $16.75

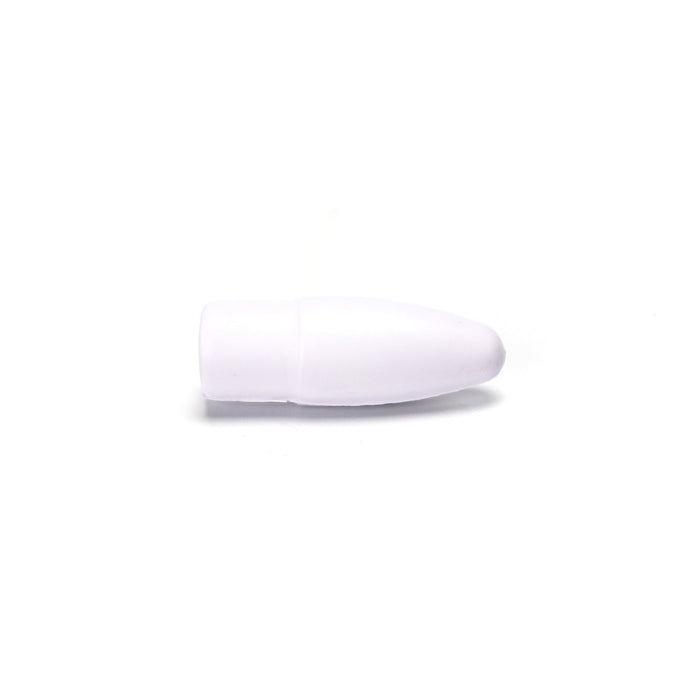

Nose Cone for Precision Air-Powered Projectile Nose Cone for Precision Air-Powered Projectile Item # 94-2800-03
$4.95

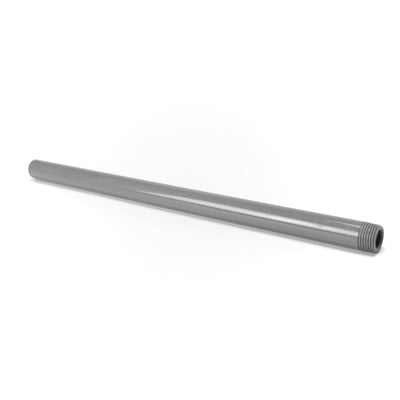

Launch Tube for Precision Air-Powered Projectile Launch Tube for Precision Air-Powered Projectile Item # 94-2800-02
